Double-side Electronic-Jacquard Machines


价格:

Online inquiry

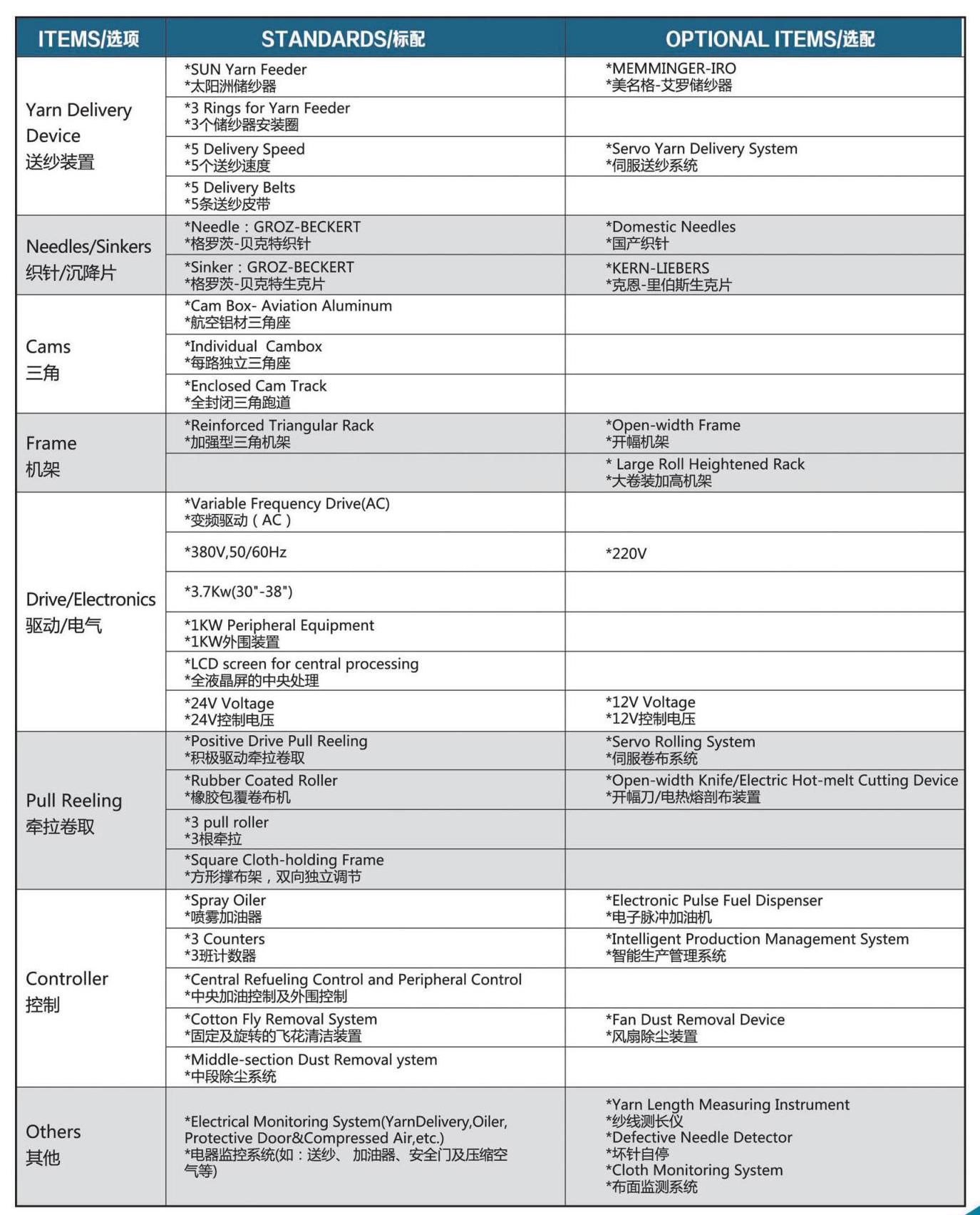

PERFORMANCE AND FEATURES TECHNICAL DATA

This model  is  developed from  double jersey  electronic-Jacquard machines,which  is  based on  cylinder electronic   needle selection   system   while adding  same functions  on the  dial.The dial   also adopts   8-segment jacquard piece of   electronic needle selection methods to make sure two sides of jacquard fabrics are achievable.

It greatly  expands the  range  of fabric  changes,provides  a wider  space for  fabric developments,With enhancement on the  jacquard fabrics'concave-convex feelings,it is the best choice for bedding fabrics.The 1.9F/In model not only benefits the knitting   stability,but   also improves production efficiency.


筒径DIAMETER

30IN*   34IN

38IN   42IN

针距GAUGE

E12*

E18-E24  E28*

路数FEEDER

1.6F/IN(38IN60F)

1.9F/IN(38IN72F)

线速度SPEED

0.8m/s


占地面积OCCUPATION

25m2


重量G.W

3000-4000kg
